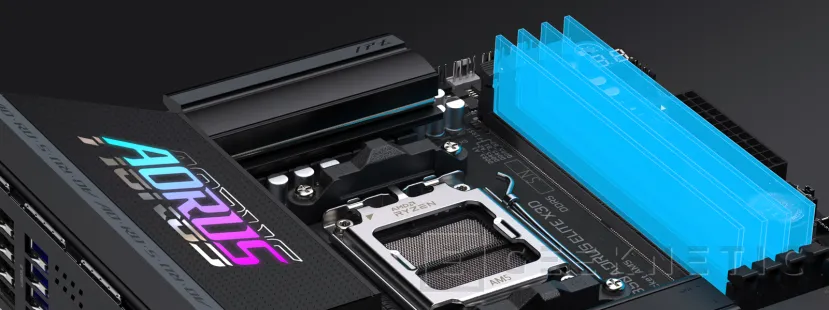

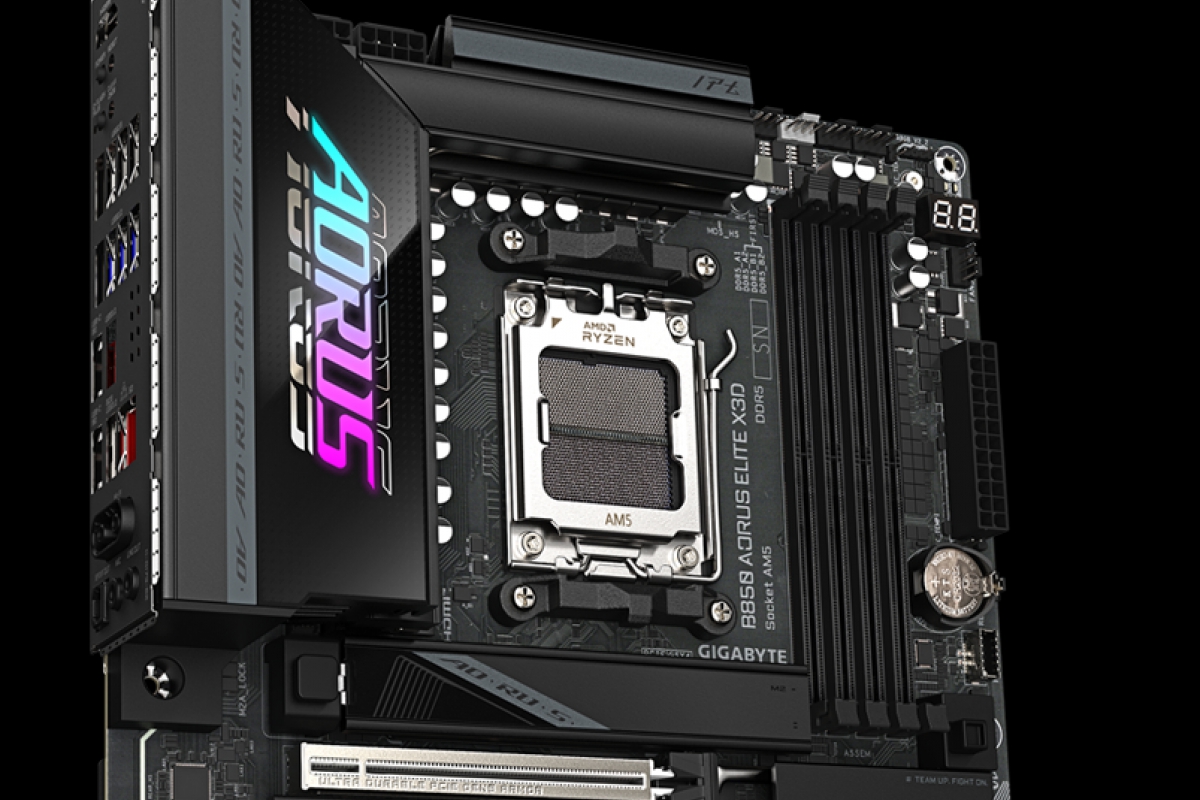

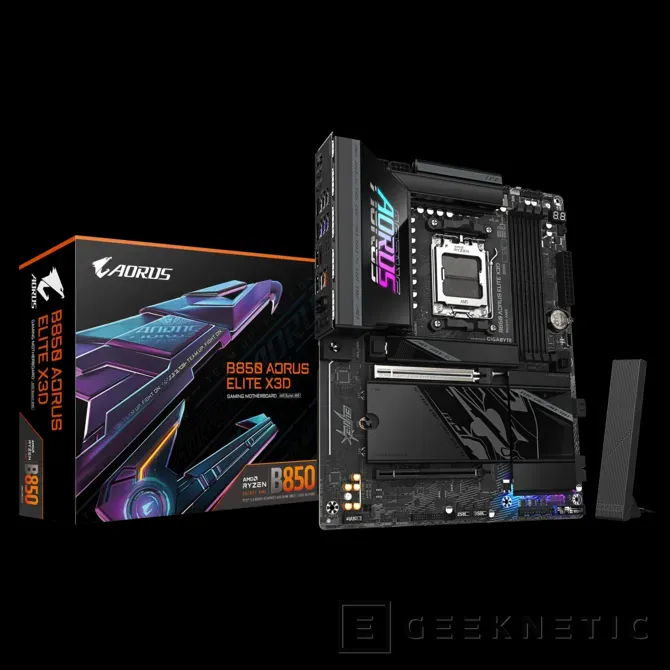

GIGABYTE Unveils AORUS B850 ELITE X3D Motherboard with Turbo X3D 2.0 and Low Latency AMD EXPO DDR5 Support

For users who are looking for a motherboard with which to ride your gaming PC, AORUS It has a new option in its catalogue, the B850 ELITE X3D. A new board under the gaming brand GIGABYTE which adds compatibility with the Turbo Mode 2.0 and thus take better advantage of the advantages offered by extended cache of the AMD Ryzen X3D Series. In addition, this model has also received the update AGESA 1.3.0.1b for compatibility with the Low latency RAM.

The GIGABYTE B850 AORUS ELITE X3D arrives with support for DDR5 Ultra Low Latency and Turbo X3D 2.0

If you are looking to set up a new gaming PCinstead of buying the Steam Machineyou have this new plate available GIGABYTE B850 AORUS ELITE X3Dcompatible with AMD Ryzen with socket AM5. This model adds support for memory modules DDR5 Ultra Low Latency which has recently been introduced amd in their profiles AMD EXPO for quick and easy memory overclocking. Compatible with memories up to 8,200 MT/s and thanks to your 4 slots you can install up to 256GB.

In addition, it has the mode Turbo X3D 2.0capable of offering better performance with processors AMD X3D. Thanks to the AI Parameters can be adjusted in real time to get the most out of your hardware including an X3D processor, with two available profiles Extreme Game and Maximum Performance.

PCIe 5.0, Wi-Fi 7 and 16+2+2 phase VRM for high-power CPUs

As for the rest of the features, it includes a slot PCIe 5.0 x16 for next-generation graphics, along with one more PCIe 4.0 x4 offered by the chipset. Also comes with two M.2 PCIe 5.0 slots and others 2 PCIe 4.0 compatible. Your design of 16+2+2 phase VRM and two power connectors 8 pin for the plate can support High consumption CPUsdelivering enough energy for great performance.

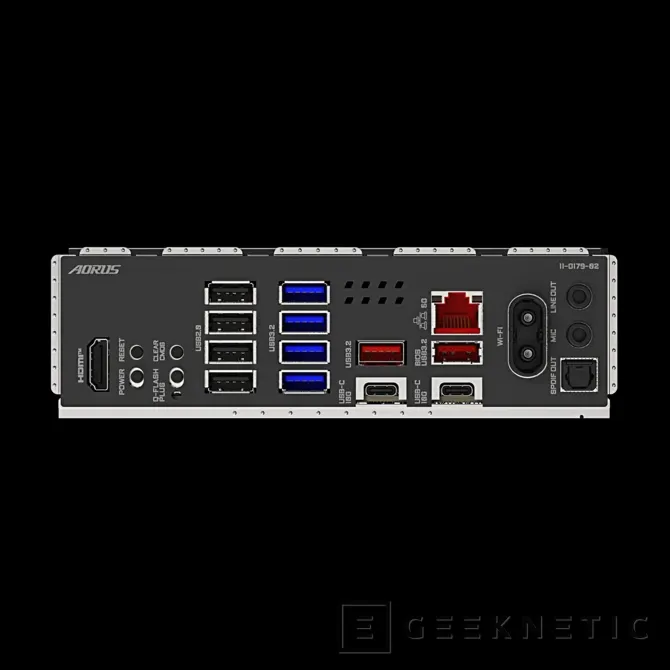

Also added Wi-Fi 7 for next-generation wireless connectivity, accompanied by Bluetooth 5.4. If you want to connect to a wired network, it has a RJ45 compatible with 5GbE. For peripherals you have several ports available USB 3.2 Gen 2 of Type A and of Type Cplus dedicated buttons for reboot, update bios and clear CMOS.

There is no recommended price for this new model, of which we leave you the complete specifications below.

Processor and chipset

Socket: amd AM5
Compatible with:
- AMD Ryzen 9000 Series
- AMD Ryzen 8000 Series
- AMD Ryzen 7000 Series
Chipset: amd B850

RAM memory

Supports memory DDR5 from 4800 MT/s until 8200 MT/s (OC)
4 DDR5 DIMM slots
Maximum capacity of 256GB (64 GB per module)
Architecture Dual Channel
Compatible with modules:
- Non-ECC Unbuffered DIMM
- Settings 1Rx8 / 2Rx8 / 1Rx16
Supported profiles:

Integrated graphics

Compatible with Integrated AMD Radeon Graphics
1x HDMI 2.1
Maximum resolution 4096 x 2160 at 60Hz
Compatible with:

Audio

Codec Realtek ALC1220
High Definition Audio
Compatible with:
- 2.0 / 4.0 / 5.1 / 7.1 channels
Exit Optical S/PDIF
Audio support DSD

Network and connectivity

Realtek 5GbE LAN
- 5Gbps
- 2.5Gbps
- 1Gbps
- 100Mbps
Wi-Fi 7 Realtek RTL8922AE
Compatible with bands:
Standard compatible 802.11be (160MHz)
Bluetooth 5.4

Expansion slots

1x PCIe x16 main
- PCIe 5.0 x16 with Ryzen 9000/7000
- PCIe 4.0 x8 with Ryzen 8000 Phoenix 1
- PCIe 4.0 x4 with Ryzen 8000 Phoenix 2
1x secondary PCIe x16

Storage

4 M.2 slots
- 2x PCIe 5.0 x4/x2 (depending on CPU)
- 2x PCIe 4.0 x4/x2
Compatible with formats:
2 SATA 6 Gb/s ports
RAID support:
- RAID 0
- RAID 1
- RAID 5
- RAID 10
