NZXT N7 B850 arrives with PCIE 5.0 support, DDR5 to 8,000 MHz and a 16+2+1 phase VRM for AM5

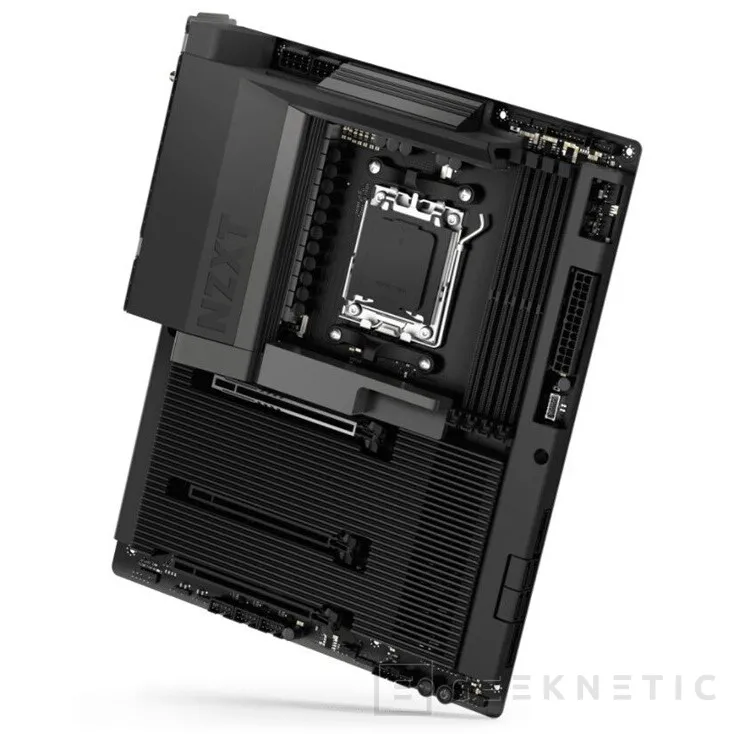

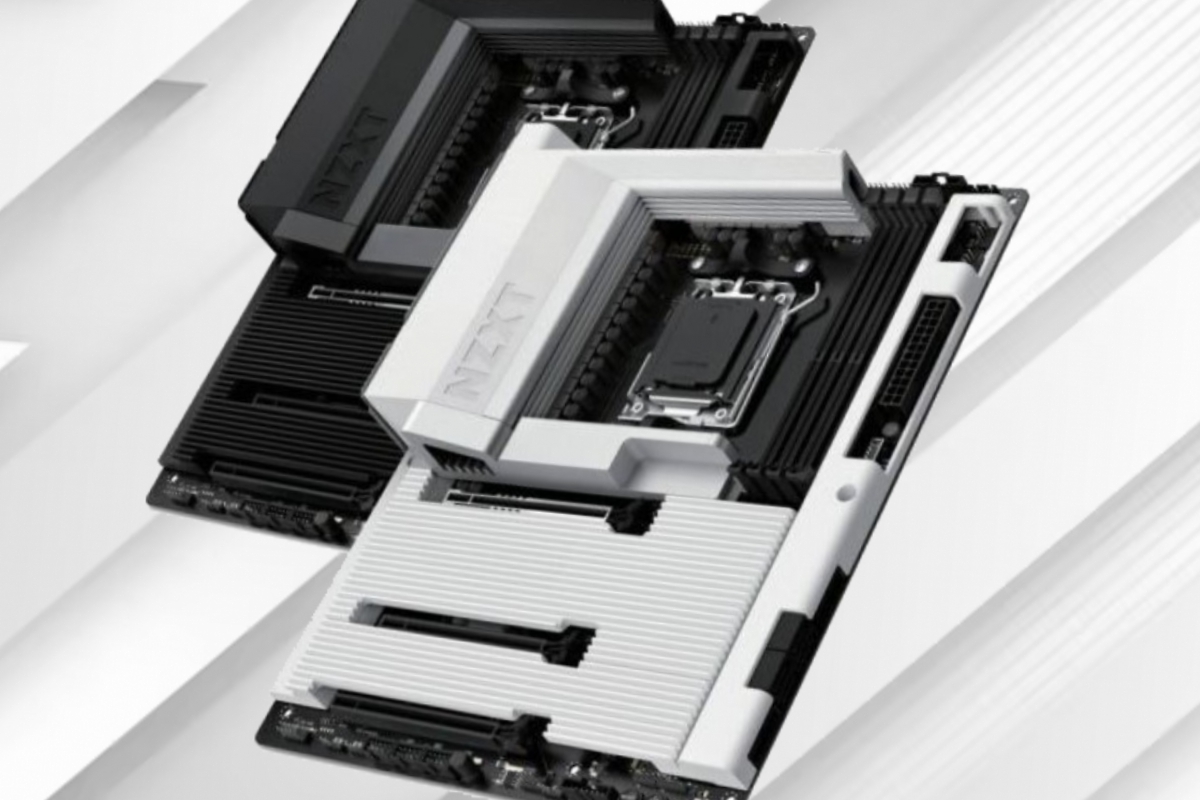

There are plaques that enter the eyes and others that convince by technical file. The NZXT N7 B850 wants to play in both leagues at the same time: Very careful aesthetics and a set of specifications that, on paper, place it as a solid base For a powerful and update PC. It arrives in two colors (all black or black/black bicolor) with black PCB and matte covers in key areas (front, m.2, I/O and VRM dissipators) to keep the brand so recognizable look of the brand.

What proposes (and for whom)

The heart is put by the AMD B850 chipset, High -performance equipment oriented without going to exotic ends. If your idea is to mount a serious Ryzen Am5, play with last batch graphs and work with new generation PCIE storage, this plate fits: it does not seek to be the strongest, but the one that lets you squeeze modern hardware without problem.

Construction and VRM: prepared to tighten

Under the pretty sheet there are mimbres. The N7 B850 rides a 16+2+1 phases with 80 to drm In all of them and ATX 24 Pins + Double Eps of 8 Pins. Translated: Stable power delivery for demanding CPUS am5 and margin to refine them. The 8 -layer PCB with 2 oz of copper helps control temperatures and signal when you start asking serious things to the system.

PCIE MEMORY AND LINES: Future in sight

The socket am5 talks with four dimm DDR5 up to 256 GB and frequencies of DDR5-8000 (If the kit and the CPU accompany). In graphic expansion there is a PCIe 5.0 x16 list for current cards and whatever comes. In storage, Two m.2 NVME GEN 5 for latest generation and a Third m.2 Gen 4×4 hanging from the B850.

Eye in the detail of lanes: one of the X16 Slots Electric Va. and share lines with that third m.2. It is not a “but”, it is a notice for navigators: it is convenient to plan well what you connect where you think to occupy everything.

External and internal connectivity: complete and without oddities

In ports, the plate is generous and, above all, coherent: USB-C 10 GB/S, two USB 3.2 Gen 2 Type A (10 GB/S), four USB 3.2 Gen 1 (5 GB/S) and two USB 2.0; In addition, internal headwaters for another USB-C 10 GB/Sy two extra gen 1. For video there are HDMI (useful if you throw IGPU from an Ryzen with graphics).

In network, surprise for good the jump: Ethernet 5 GBE via Realtek 8126 series and Wi-Fi 6E + Bluetooth 5.2 with MediaTk RZ608. Many plates in this range are still anchored in 2.5 GBE; Here are cable margin if your network allows it, and 6 GHz in wireless to get rid of saturations.

The audio is in charge of the Realtek ALC1220, a classic solvent for games, music and calls without the need for a dedicated card.

Nzxt experience: CAM and clean assembly

Beyond the table, the NZXT N7 B850 plays a asset that many value: Integration with Nzxt Cam. MONITORIZATION TEMPERATURES, ADJUSTMENTS, SYNCHRONIZES LIGHTING AND DECEIVE THE EQUIPMENT TO YOUR LIKE FROM THE SAME SIZE. It fits the brand approach: orderly setup, hidden cables and consistent aesthetics, without giving up fine control.

If you come from an older platform and want to make the leap to AM5 with several years, this plate gives you the ingredients that matter right now: PCIE 5.0 for GPU, two m.2 gen 5 for really fast SSD, DDR5 at high frequencies and a VRM that will not make you sweat when the CPU gets serious. The network connectivity is above the average, and the USB port set covers both game peripherals and rapid external storage.

NZXT N7 B650E SPECIFICATIONS AGAINST THE NEW N7 B850
