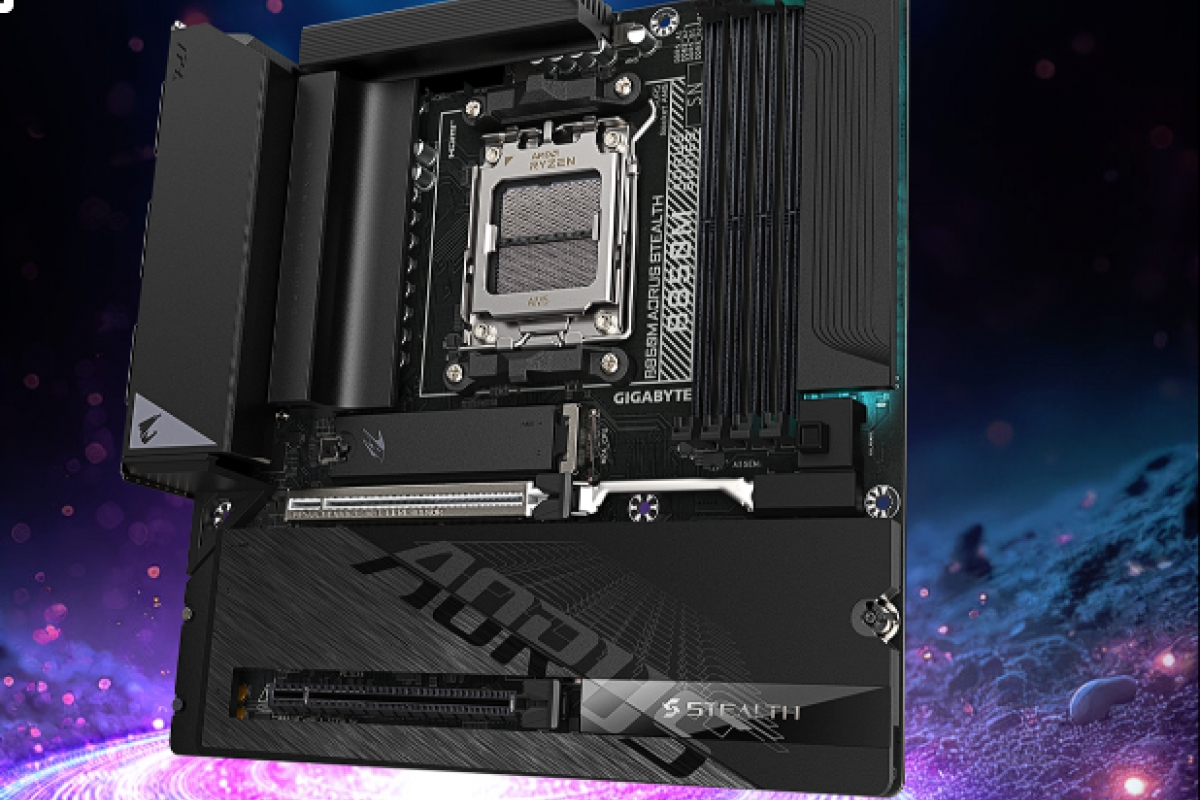

The new AORUS B850M Stealth relies on a design with rear connectors in Micro-ATX format

For lovers of small constructions, now that the Steam Machine has become fashionable, GIGABYTE brings us another motherboard with form factor Micro-ATX. Under your brand for gaming AORUSis now available B850M Stealtha plate that also has the rear connectors so that in addition to being small, your setup has a clean interior of cables. If you are thinking of setting up a Mini PC with socket AM5 This is a good choice.

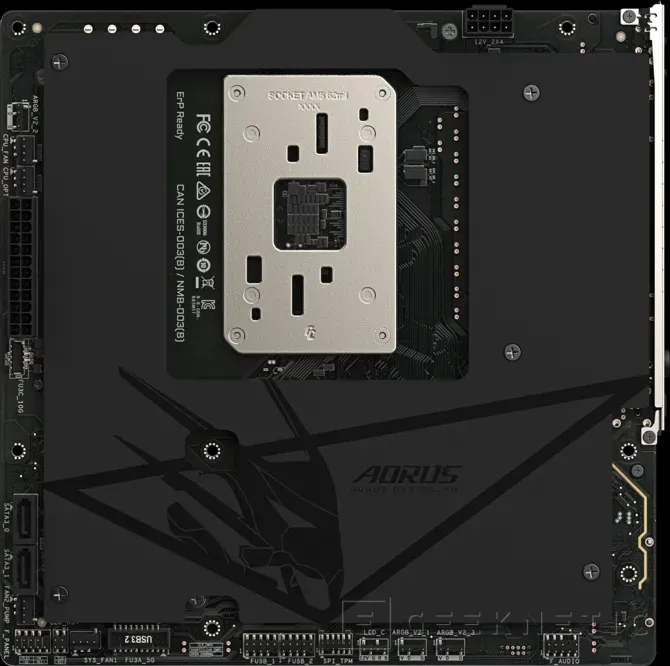

A Micro-ATX board with hidden connectors for a cleaner interior

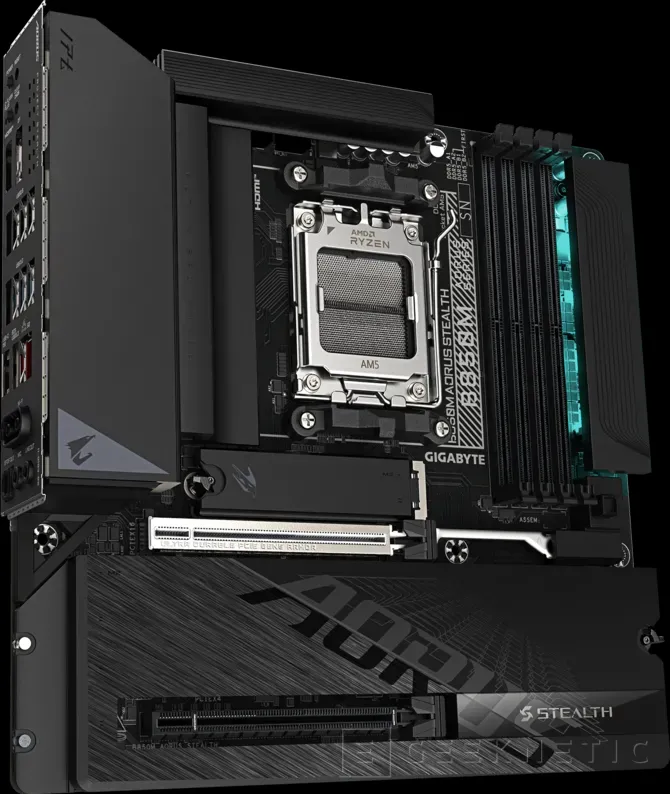

GIGABYTE wanted to introduce a format Micro-ATX for gamers, with hidden connectors, being one of the company’s first such models. Your design VRM is composed of 8+2+2 phases and is powered with the usual connector 24 pin and one of 8 pin additional to deliver to the CPU all the energy it demands. It has 4 DDR5 memory slots with the possibility of installing up to 256GB RAMideal for small servers that demand a large amount of memory.

Compatible with Ryzen X3D and up to three M.2 SSDs

If you are thinking of building a server or gaming equipment, this board is also compatible with mode X3D Turbo 2.0which will take advantage of all the advantages when we install a AMD Ryzen with technology 3D V-Cache. Regarding storage, it incorporates the technology M.2 EZ-Flex in the main slot Gen 5 that will allow you to install your unit comfortably and perfectly M.2 SSD. In addition to this, it has other two M.2 slots further PCIe 4.0.

PCIe 5.0, Wi-Fi 7 and 5 Gbps network

You can install a GPU latest generation thanks to its full slot PCIe 5.0 x16 (4.0 in the Ryzen 8000 Series), and also some additional plate in the other slot PCIe 4.0 x16. In addition to cards, you can also add peripherals and accessories to their positions USBSpecifically, it has several ports USB-A until 3.2 Gen 2 and a USB-C also 3.2 Gen 2.

In addition to all this connectivity, this board AORUS It also has room for a network connector 5Gbps RJ45and offer connectivity wireless to next-generation networks with Wi-Fi 7 (compatible with 160MHz) next to Bluetooth 5.4. At the moment the recommended price for this bet is not known. GIGABYTE in solutions Micro-ATX for gaming.

We leave you the complete specifications of the AORUS B850M Stealth.

Processor

Socket: AMD AM5.
Compatible with:
- AMD Ryzen 9000 Series.
- AMD Ryzen 8000 Series.
- AMD Ryzen 7000 Series.

Chipset

Memory

Guy: DDR5.
Supported speeds:
- 8,200 MT/s (OC).
- 8,000 MT/s (OC).
- 7,800 MT/s (OC).
- 7,600 MT/s (OC).
- 7,200 MT/s (OC).
- 7,000 MT/s (OC).
- 6,800 MT/s (OC).
- 6,600 MT/s (OC).
- 6,400 MT/s (OC).
- 6,200 MT/s (OC).
- 6,000 MT/s (OC).
- 5,600 MT/s (OC).
- 5,200, 4,800 and 4,400 MT/s.
Slots: 4 × DDR5 DIMMs.
Maximum capacity: 256 GB (4 × 64 GB).
Architecture: Dual channel (Dual Channel).
Compatibility:
- Non-ECC Unbuffered DDR5 modules.
- AMD EXPO.
- Intel XMP.

Video outputs (depends on installed APU)

1 × HDMI 2.1
- Up to 4,096 × 2,160 at 60 Hz.
- Compatible with HDCP 2.3 and HDR.
1 × DisplayPort 1.4
- Up to 3,840 × 2,160 at 144 Hz.

Audio

Codec: Realtek ALC1220.
High definition audio.
Supported configurations:
S/PDIF optical output.
DSD audio compatible at the rear Line-Out output.

Grid

LAN: Realtek 5GbE.
- 5 Gbps.
- 2.5Gbps.
- 1 Gbps.
- 100Mbps.

Wireless connectivity

Wi-Fi 7 (Realtek RTL8922AE).
Compatible with:
- 802.11a/b/g/n/ac/ax/be.
- 2.4, 5 and 6 GHz bands.
Bluetooth 5.4.
Compatible with channels 160MHz.

Expansion slots

1 × PCIe x16 (CPU).
- Ryzen 9000 and 7000: PCIe 5.0 x16.
- Ryzen 8000 Phoenix 1: PCIe 4.0 x8.
- Ryzen 8000 Phoenix 2: PCIe 4.0 x4.
1 × PCIe x16 physical (chipset).

Storage

3 × M.2 Socket 3 (2280):
- M2A_CPU
  - PCIe 5.0 x4/x2 with Ryzen 9000 and 7000.
  - PCIe 4.0 x4/x2 with Ryzen 8000.
- M2B_CPU
  - PCIe 4.0 x4/x2 with Ryzen 9000 and 7000.
  - PCIe 4.0 x4/x2 or x2 depending on the Ryzen 8000 processor.
- M2C_SB
  - PCIe 4.0 x4/x2 from the chipset.
2 × SATA 6 Gb/s.
Supported RAID:
- NVMe: RAID 0, 1, 5 and 10.
- SATA: RAID 0 and RAID 1.
- RAID 5 only with Ryzen 9000.
