ASUS presents its NUC 14 Essential Fanless, processors up to Intel N250 and barebone option without memory or SSD
For industrial environments, ASUS has a new device available with processors Intrel n250 and N150. A device that works no need for active ventilationideal for operation 24/7 with less worries. An ultra-low consumption device under its platform NUC of the most basic rangeideal for industrial environments that require a device with the least maintenance.

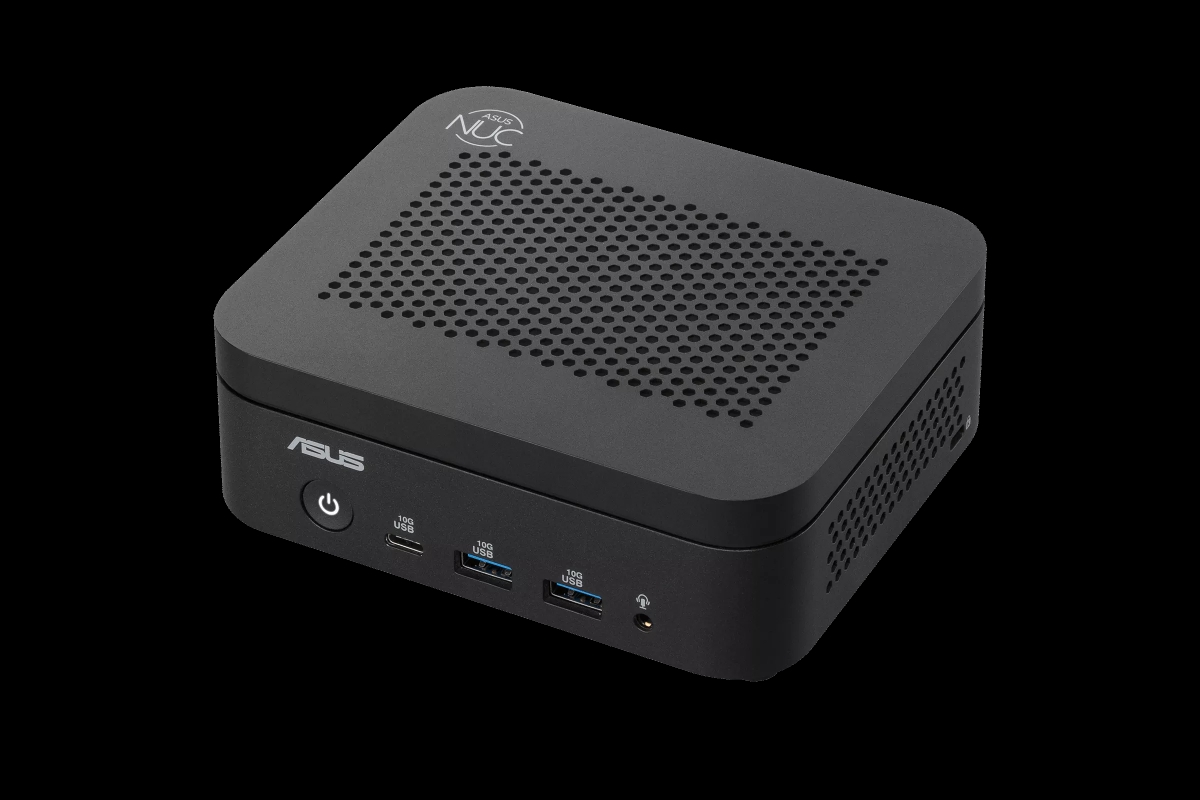

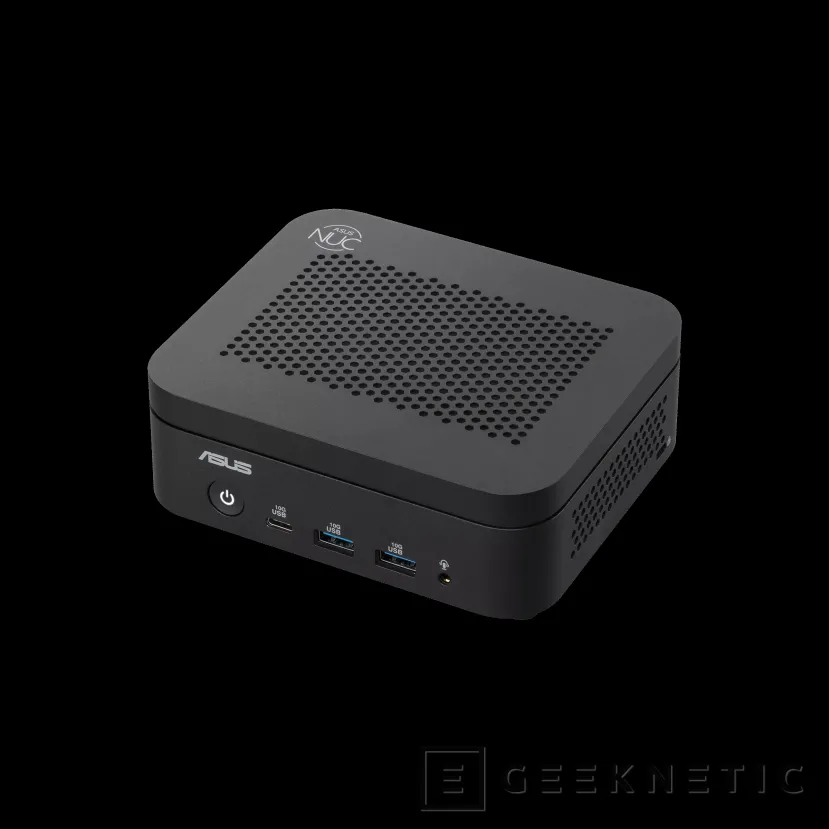

ASUS NUC 14 Essential Fanless: a fanless Mini PC for 24/7 use
This new ASUS NUC 14 Essential Fanless MiniPC has processors Intel N150 and N250which is accompanied by RAM memory DDR5 in SO-DIMM format with a maximum of 32 GB. For storage, you can add an SSD main drive in its slot M.2 compatible with PCIe 3.0 x4but it also has a second slot with size 2242 for drives M.2 SATA.
To offer a fanless passive coolingASUS has considerably increased the size of the heatsink. Despite this, the NUC has a size of only 135 x 115 x 45mm with a weight of almost 1.2 kilos for the complete equipment. The MiniPC has also passed military grade testing MIL-STD-810H to work under extreme conditions of humidity, vibration or in case of receiving blows.
Wi-Fi 6E, 2.5 GbE and up to three 4K monitors

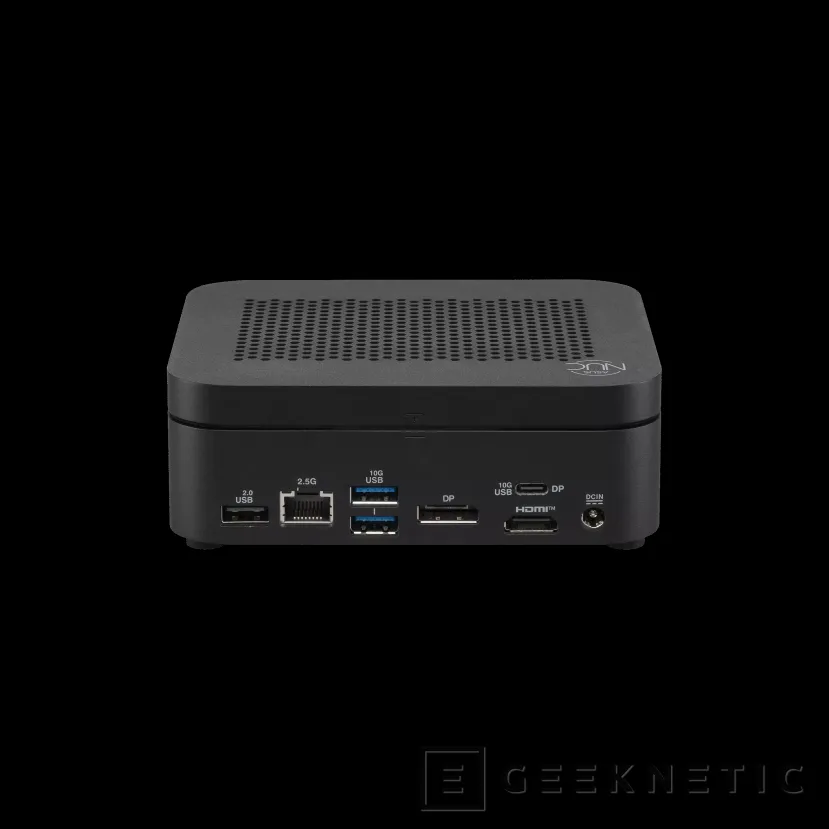

In these models you can connect to the internet via cable, with its 2.5Gbps RJ45 portalthough it also comes with Wi-Fi 6E and Bluetooth 5.3. To connect accessories and peripherals we find several ports USB-A and USB-C, with speeds up to 10 Gbps. For video output you can use its connector HDMI 2.1 or DisplayPort 1.4 with a dedicated port or via USB-C, compatible with 4K resolution and up to 3 monitors simultaneously.
At the moment there is no recommended price for this new MiniPC, which is also available in format barebone without memory or SSD included. These are the complete specifications.
|
Specification |
ASUS NUC 14 Essential Fanless Mini PC |
ASUS NUC 14 Essential Fanless Kit |
|
Format |
Mini PC |
kit |
|
Operating system |
Windows 11 Home / Windows 11 Pro |
No preinstalled operating system. Compatible with Windows 11 Home 64-bit, Windows 11 Pro 64-bit, Windows 11 Home PRC/CPP, Windows 11 IoT Enterprise 64-bit, Ubuntu 24.04 LTS 64-bit, and Red Hat Enterprise Linux 64-bit |
|
Processor |
Intel Processor TWL-N150, 6 W TDP |
Intel Processor TWL-N250, 6 W TDP / Intel Processor TWL-N150, 6 W TDP |
|
Chipset |
Integrated |
Integrated |
|
Graphics |
Intel Graphics |
Intel Graphics |
|
Memory |
8 GB DDR5-5600 included. Up to 32GB DDR5-4800 SO-DIMM |
Not included. Up to 32GB DDR5-4800 SO-DIMM |
|
Storage |
128GB NVMe M.2 2280 SSD included. Supports M.2 2280 NVMe PCIe 3.0 x4 128GB to 1TB and M.2 2242 SATA 128GB to 1TB |
Not included. Supports M.2 2280 NVMe PCIe 3.0 x4 128GB to 1TB and M.2 2242 SATA 128GB to 1TB |
|
Wi-Fi/Bluetooth |
Intel Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3 |
Intel Wi-Fi 6E AX211 (Gig+), Bluetooth 5.3 |
|
LAN |
1 × Realtek RTL8125D-CG, 2.5GbE |
1 × Realtek RTL8125D-CG, 2.5GbE |
|
Audio |
Realtek RTL8125D-CG |
Realtek RTL8125D-CG |
|
Front ports |
1 × USB 3.2 Gen 2 Type-C |
1 × USB 3.2 Gen 2 Type-C |
|
Rear ports |
1 × USB 3.2 Gen 2 Type-C with DisplayPort 1.4 |
1 × USB 3.2 Gen 2 Type-C with DisplayPort 1.4 |
|
power adapter |
19V DC, 3.42A, 65W |
19V DC, 3.42A, 65W |
|
Dimensions |
135 × 115 × 45 mm without rubber feet |
135 × 115 × 45 mm without rubber feet |
|
Weight |
1.19kg |
640g |
|
Color/logo |
Black, with ASUS logo |
Black, without ASUS logo / with ASUS logo |
|
Accessories |
Power adapter + cable |
Power adapter + cable |
|
Operating temperature |
0-35°C |
0-35°C |
