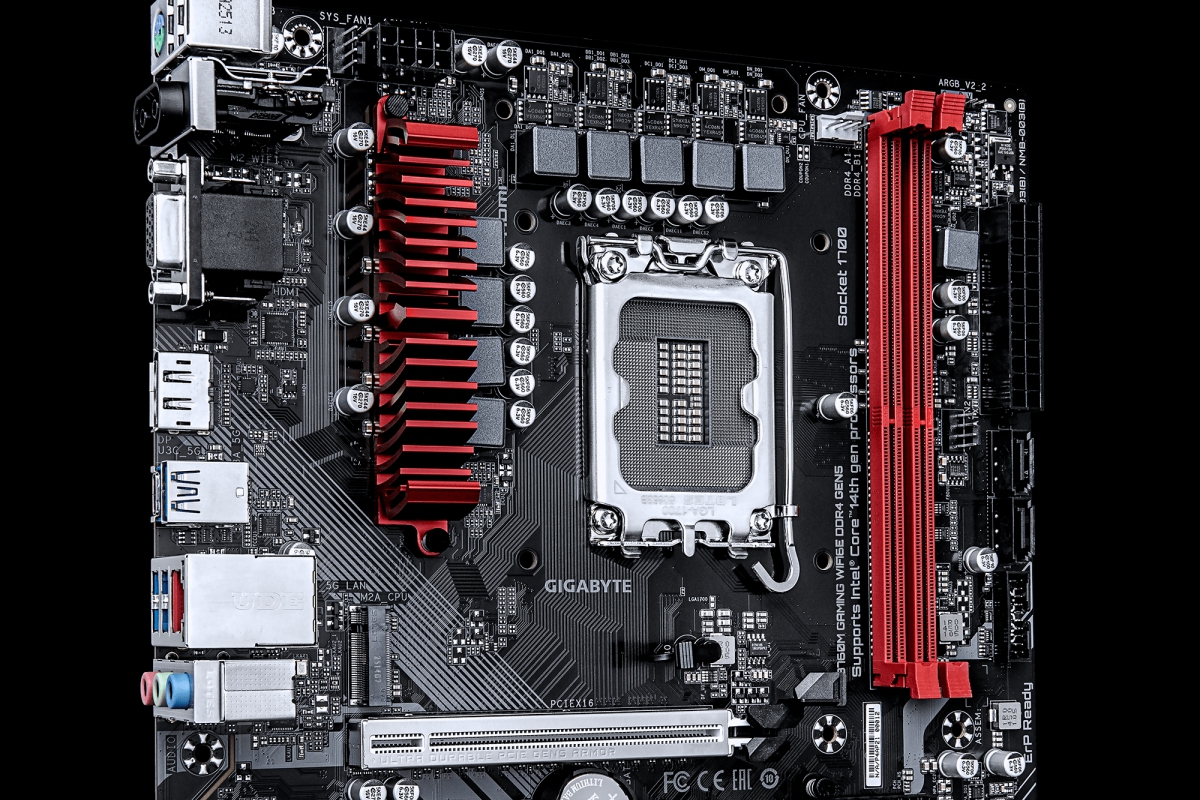

GIGABYTE renews one of its motherboards to continue using DDR4 memory with PCIe 5.0 cards

GIGABYTE renews one of its motherboards to continue using DDR4 memory with PCIe 5.0 cards

ByEthan Collins

The current memory crisis is making many users return to the old DDR4. Even manufacturers have been introducing more current models that include this previous generation of memory for compatible Intel and AMD processors. GIGABYTE wants you to take advantage of DDR4 memory with this new model B760M GAMING DDR4which has been updated to include PCI Express 5.0 and thus take advantage of the most recent graphics for gaming.

A renewed motherboard with support for DDR4, PCIe 5.0 x16 and Wi-Fi 6E

This motherboard takes advantage of the DDR4 and DDR5 memory support on Intel processors with LGA 1700 socket. The GIGABYTE B760M GAMING WIFI6E DDR4 GEN5 has been renewed to also add compatibility with PCIe 5.0 x16 and Wi-Fi 6E connectivity along with DDR4 memory. It has two DDR4 memory slots with a maximum of 64GB total. It also has two connectors for M.2 PCIe 4.0 SSD drives.

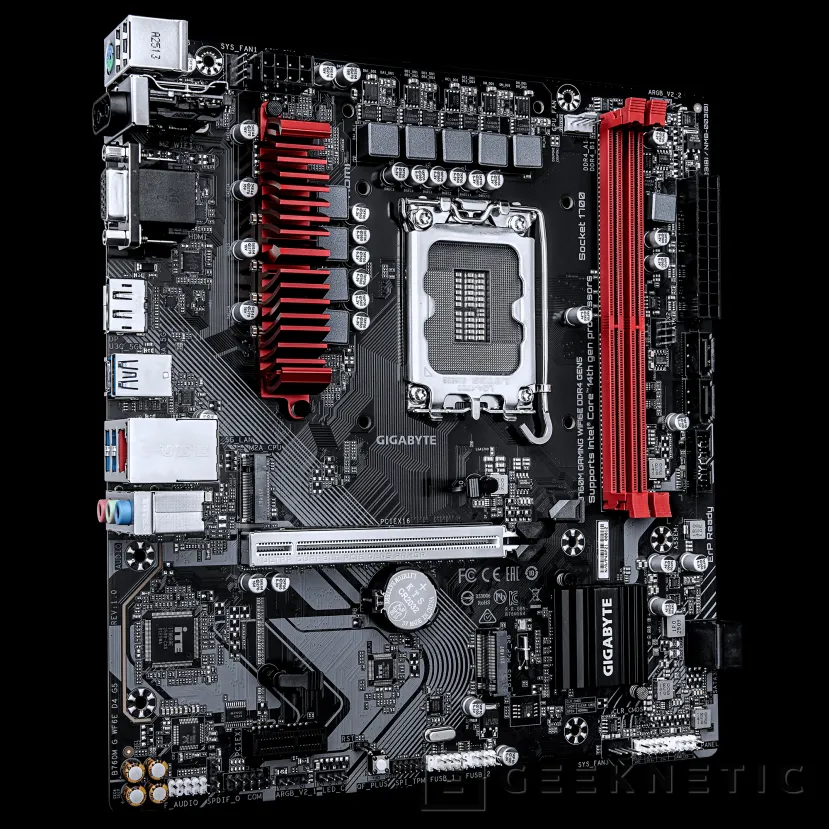

Geeknetic GIGABYTE renews one of its motherboards to continue using DDR4 memory with PCIe 5.0 cards 2

Reinforced slot and wireless connectivity to revive the Intel platform

As an extra, this new version adds a reinforced PCIe 5.0 x16 slot for the latest generation graphics, instead of offering PCIe 4.0 x16 as in the previous model. Also adds Wi-Fi 6E and Bluetooth wireless connectivity which was not available in the previous model. Other characteristics are maintained, such as its 6+2+1 phase distribution and processor compatibility Inte LGA 1700 that correspond to the 12, 13 and 14 Gen.

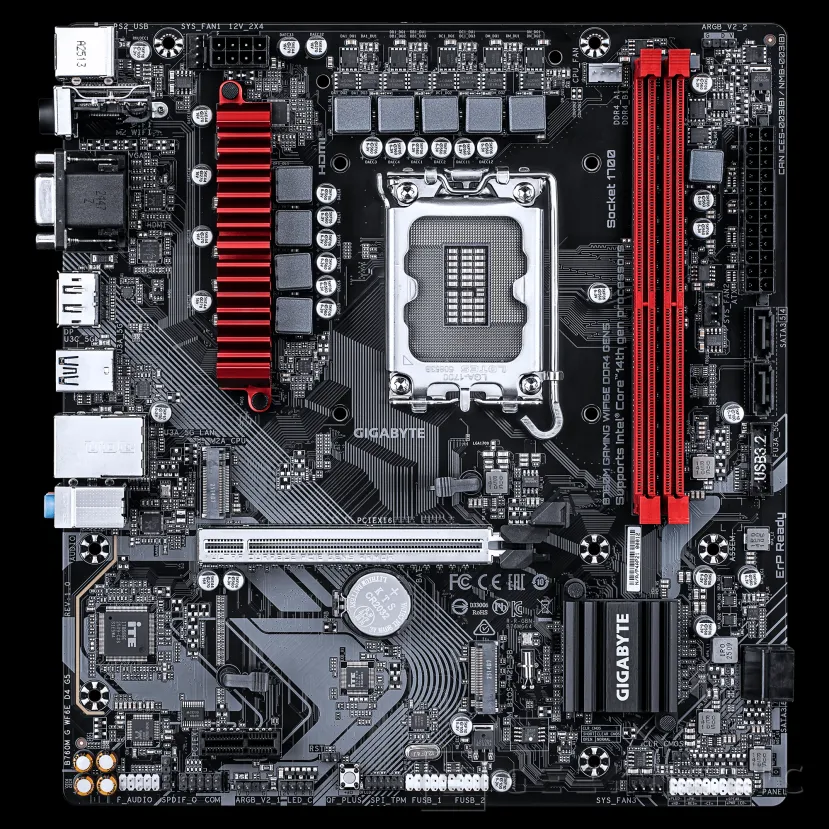

Geeknetic GIGABYTE renews one of its motherboards to continue using DDR4 memory with PCIe 5.0 cards 3

EZ-Latch connections and technologies for easy mounting without changing RAM

The model also has other connectivity features, such as a Rear USB-C supports 5Gbpsand video output DisplayPort and HDMI. GIGABYTE technologies such as PCIe EZ-Latch to facilitate the installation and uninstallation of PCI Express cards, Q-Flash Plus to update the BIOS without processor or the simplified antenna connector from GIGABYTE.

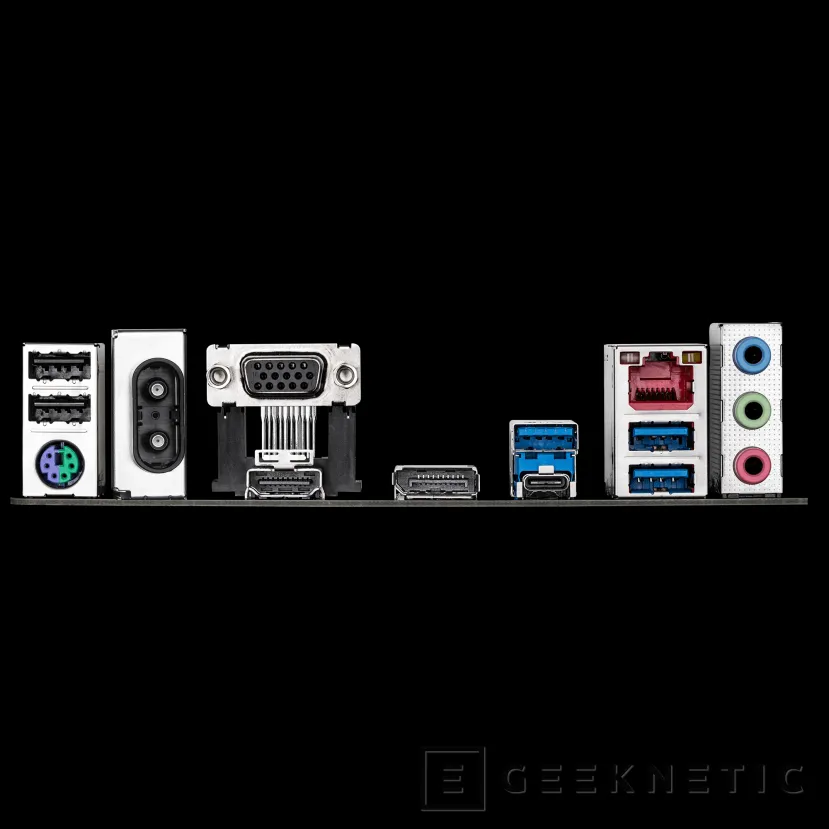

Geeknetic GIGABYTE renews one of its motherboards to continue using DDR4 memory with PCIe 5.0 cards 4

A model that GIGABYTE seems to have launched as new, since the oldest BIOS version is from June 30. In any case, this is one more option for take advantage of your DDR4 memory modules and older processors up to 14 Gen with Intel LGA 1700 socket.

We leave you with the complete specifications of this “new” model.

Processor

  • Socket: LGA1700.
  • Supported processors:

    • Intel Core 14th generation.
    • Intel Core 13th generation.
    • Intel Core 12th generation.
    • Intel Pentium Gold.
    • Intel Celeron.

  • L3 cache: It depends on the processor installed.

Chipset

  • Chipset: Intel B760 Express.

Memory

  • Guy: DDR4.
  • Supported speeds: 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s.
  • Slots: 2 × DDR4 DIMMs.
  • Maximum memory: 64 GB.
  • Maximum capacity per module: 32 GB.
  • Architecture: double channel.
  • ECC memory: Compatible with ECC Un-buffered 1Rx8/2Rx8 modules, operating in non-ECC mode.
  • Non-ECC memory: compatible with Un-buffered 1Rx8/2Rx8/1Rx16 modules.
  • Intel XMP: compatible.

Memory compatibility, speed and number of modules may vary depending on processor and configuration. GIGABYTE recommends checking its memory compatibility list.

Integrated graphics

Compatible with the processor’s integrated Intel HD Graphics.

  • 1 × D-Sub (VGA):

    • Maximum resolution: 1920 × 1200 at 60 Hz.

  • 1 × HDMI:

    • Maximum resolution: 4096 × 2160 at 60Hz.
    • HDMI 2.1.
    • HDCP 2.3.
    • Supports native HDMI 2.1 TMDS.

  • 1 × DisplayPort:

    • Maximum resolution: 4096 × 2304 at 60Hz.
    • DisplayPort 1.2.
    • HDCP 2.3.

  • Simultaneous monitors: until 3 screens.

Graphics characteristics may vary depending on the processor used.

Audio

  • Audio codec: Realtek.
  • Guy: High Definition Audio.
  • Channels: 2 / 4 / 5.1 / 7.1.
  • Ability to change the function of the audio connectors using the audio software.
  • Compatibility with 7.1 channel audio through software configuration.
  • S/PDIF output: compatible.

Grid

  • LAN controller: Realtek 2.5GbE.
  • Speeds: 2.5Gbps / 1Gbps / 100Mbps.

Wi-Fi and Bluetooth

  • Wireless module: MediaTek Wi-Fi 6E MT7902.
  • Wi-Fi: 802.11 a/b/g/n/ac/ax.
  • Bands: 2.4GHz / 5GHz / 6GHz.
  • Wi-Fi 6E: compatible.
  • Channel width: 160MHz.
  • Bluetooth: 5.3.
  • Wireless standard: 802.11ax.
  • Actual speed may vary depending on environment and devices used.

Expansion slots

Connected to the processor:

  • 1 × PCI Express x16:

    • PCIe 5.0.
    • Operation at x16.
    • Compatible with graphics card or NVMe SSD.

Connected to the chipset:

  • 1 × PCI Express x1:

    • PCIe 3.0.
    • Operation at x1.

M.2 Storage

Connected to CPU:

  • 1 × M.2 (M2A_CPU).
  • Socket 3.
  • M key.
  • 2280 format.
  • PCIe SSD compatible 4.0 x4/x2.

Connected to chipset:

  • 1 × M.2 (M2P_SB).
  • Socket 3.
  • M key.
  • 2280 format.
  • PCIe SSD compatible 4.0 x4/x2.

SATA

  • 4 × SATA 6Gb/s.
  • Compatible with:

    • RAID 0.
    • RAID 1.
    • RAID 5.
    • RAID 10.

USB

Back panel:

  • 1 × USB Type-CUSB 3.2 Gen 1.
  • 3 × USB 3.2 Gen 1.
  • 2 × USB 2.0/1.1.

Internal connectors:

  • 2 × USB 3.2 Gen 1 available through internal connector.
  • 4 × USB 2.0/1.1 through internal connectors.

Internal connectors

  • 1 × 24-pin ATX power connector.
  • 1 × 8-pin ATX 12V connector.
  • 1 × CPU fan connector.
  • 3 × connectors for system fans.
  • 2 × ARGB Gen2 connectors for addressable LED strips.
  • 1 × RGB LED connector.
  • 2 × M.2 Socket 3 connectors.
  • 4 × SATA 6 Gb/s connectors.
  • 1 × front panel connector.
  • 1 × front panel audio jack.
  • 1 × S/PDIF Out connector.
  • 1 × USB 3.2 Gen 1 connector.
  • 2 × USB 2.0/1.1 connectors.
  • 1 × TPM connector for GC-TPM2.0 SPI V2 module.
  • 1 × serial port connector.
  • 1 × Q-Flash Plus button.
  • 1 × reset jumper.
  • 1 × Clear CMOS jumper.

I/O rear panel

  • 2 × USB 2.0/1.1.
  • 1 × PS/2 for keyboard/mouse.
  • 2 × Wi-Fi antenna connectors (1T1R).
  • 1 × D-Sub (VGA).
  • 1 × HDMI.
  • 1 × Display Port.
  • 3 × USB 3.2 Gen 1.
  • 1 × USB Type-CUSB 3.2 Gen 1.
  • 1 × RJ-45 for Ethernet network.
  • 3 × audio connectors.

Video output compatibility depends on the processor used.

Hardware monitoring

  • Voltage detection.
  • Temperature detection.
  • Fan speed monitoring.
  • Liquid cooling flow monitoring.
  • Fan failure warning.
  • Fan speed control.

The speed control function depends on the type of fan installed.

BIOS

  • 1 × 128 Mbit flash memory.
  • AMI UEFI BIOS licensed.
  • Plug and Play 1.0a.
  • DMI 2.7.
  • WfM 2.0.
  • SM BIOS 2.7.
  • ACPI 5.0.

Additional Features

  • Compatible with GIGABYTE Control Center (GCC).
  • Q-Flash.
  • Q-Flash Plus.
  • Smart Backup.

The applications available in GCC may vary depending on the motherboard model.

Software included

  • Norton Internet SecurityOEM version.

Operating systems

  • Windows 11 64-bit.
  • Windows 10 64 bit.

Format

  • Form factor: Micro ATX.
  • Dimensions: 24.4 × 22.5cm.
