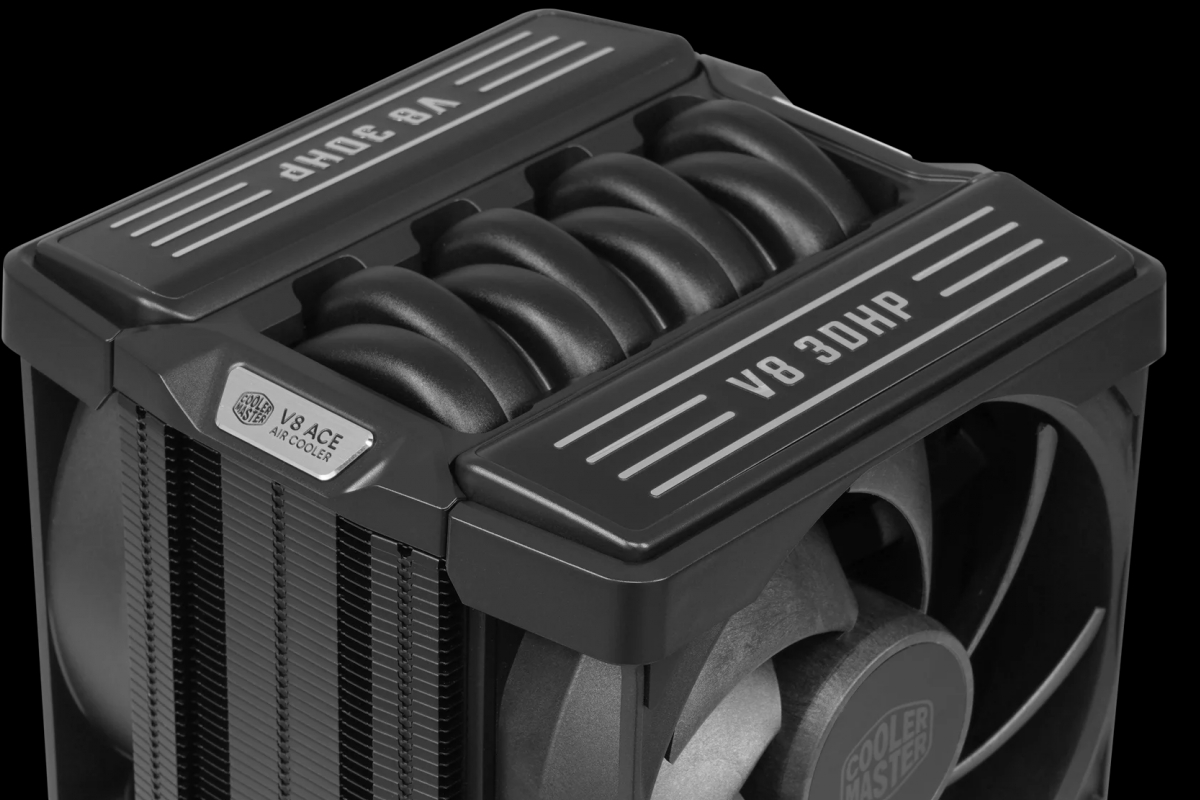

The new Cooler Master V8 ACE 3DHP is a single-tower cooler with dual-tower performance

Cooler Master has a new member in its family of series heatsinks V with 3DHP technology. A series that we saw for the first time in the CES 2025 celebrated in vegasand which now expands with this new addition. Thus, the new Cooler Master V8 ACE 3DHP offers a solution air cooling with a single tower design of dissipation fins, but is designed to offer the performance of a double tower cooler.

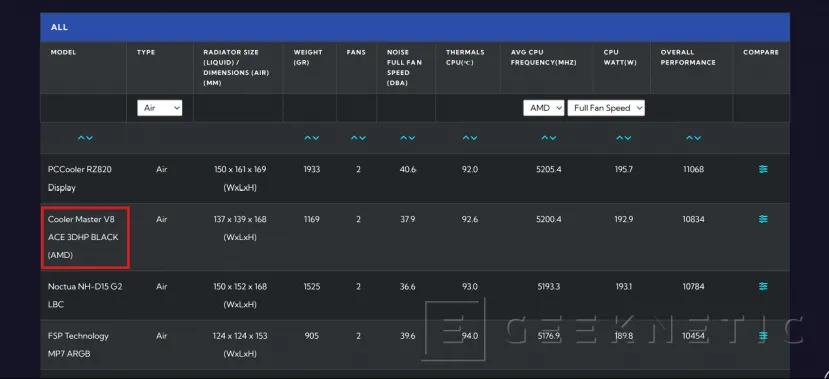

In addition to Cooler Masterwhich ensures good performance in this heatsink, Cybenetics has granted the top as a refrigerator with single tower design and the second place in your performance database. This performance is due in part to the technology already introduced by Cooler Master, the 3DHPwith a patented 3D heat pipe design.

3DHP technology to deliver the performance of a dual tower cooler

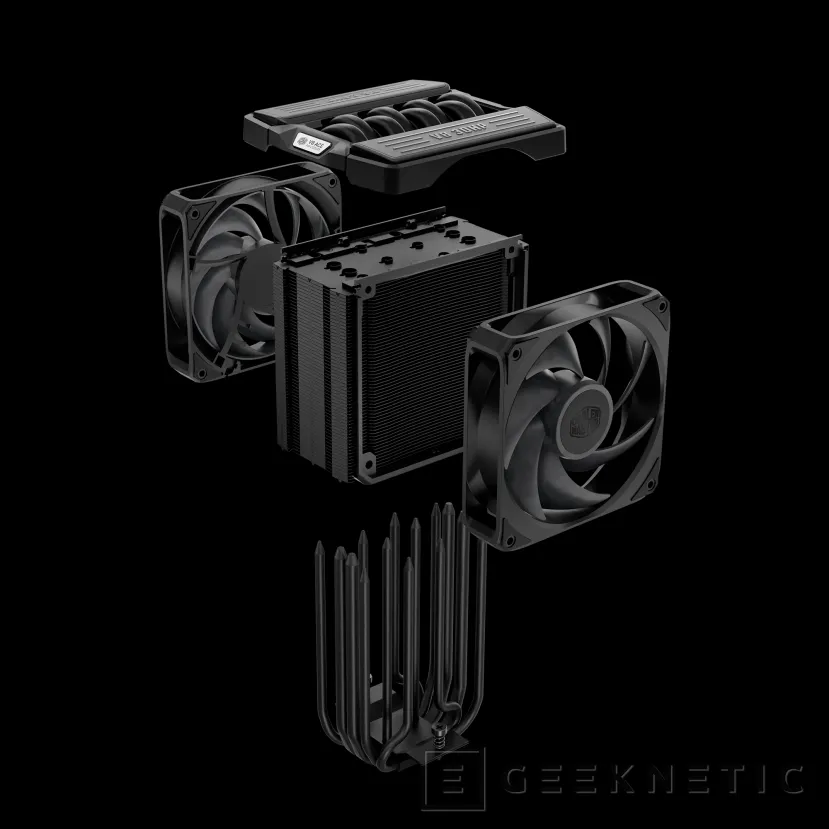

The manufacturer offers this product for high-performance computers such as workstationsequipment for gamingequipment for 3D rendering or computers that support a large workload such as those intended for the audio and video. The technology behind it is made up of 2 heat pipes with 3DHP technology and 4 tubes more conventional, which go to a dense stack of aluminum fins to improve heat transfer from the CPU and eliminate it in the tower helped by its 2 fans.

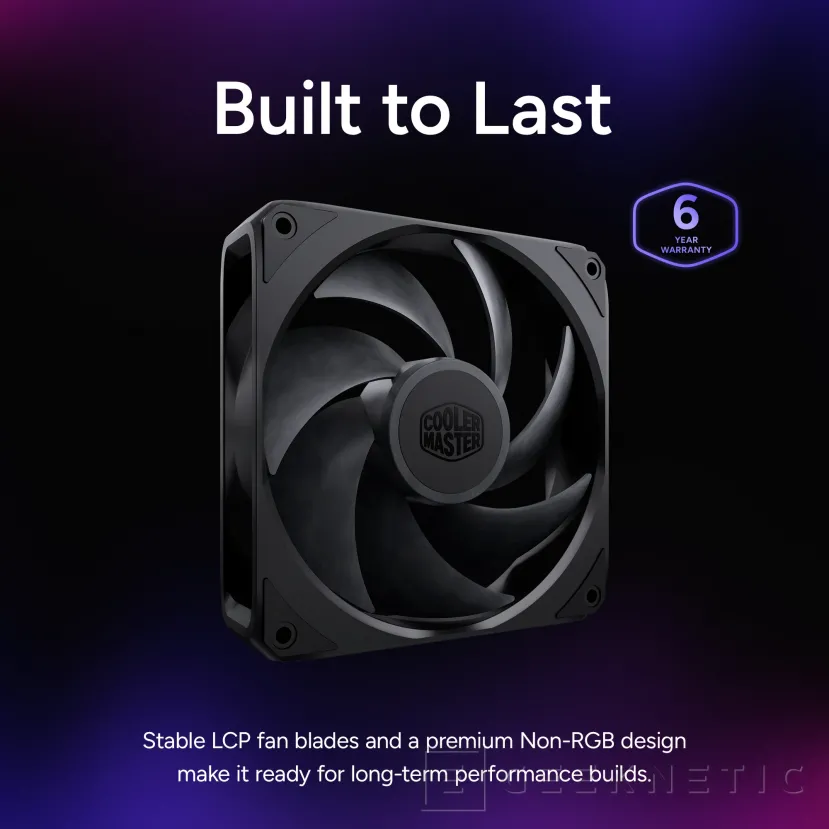

Two 120mm fans with tool-less sliding system

The fans have a mechanism that simplifies their placement and removal, with a sliding system that does not require tools, to offer the necessary space demanded by the high performance RAM. The fans of 120 x 120 x 30mm are built with LPC (liquid crystal polymer) which prevents bending in the blades and allows maximizing air flow. Specifically we have:

• Front Fan: with speeds from 0 to 2,500 RPM with a maximum flow of 152.23 m3/h (89.6 CFM) and a static pressure of 3.85mmH20offering a noise level of only 37dB(A).
• Rear Fan: It also works from 0 to 2,500 RPM and has an air flow of 103.64 m3/h (61.0 CFM) with a static pressure of 2.0mmH20. This has an even lower noise level of just 34dB(A).

The technology behind these fans goes through dynamic bearingsgetting a MTTF of more than 200,000 hoursand overall a performance that does not exceed the 38dB(A).

Compatible with Intel and AMD and available for 109 euros

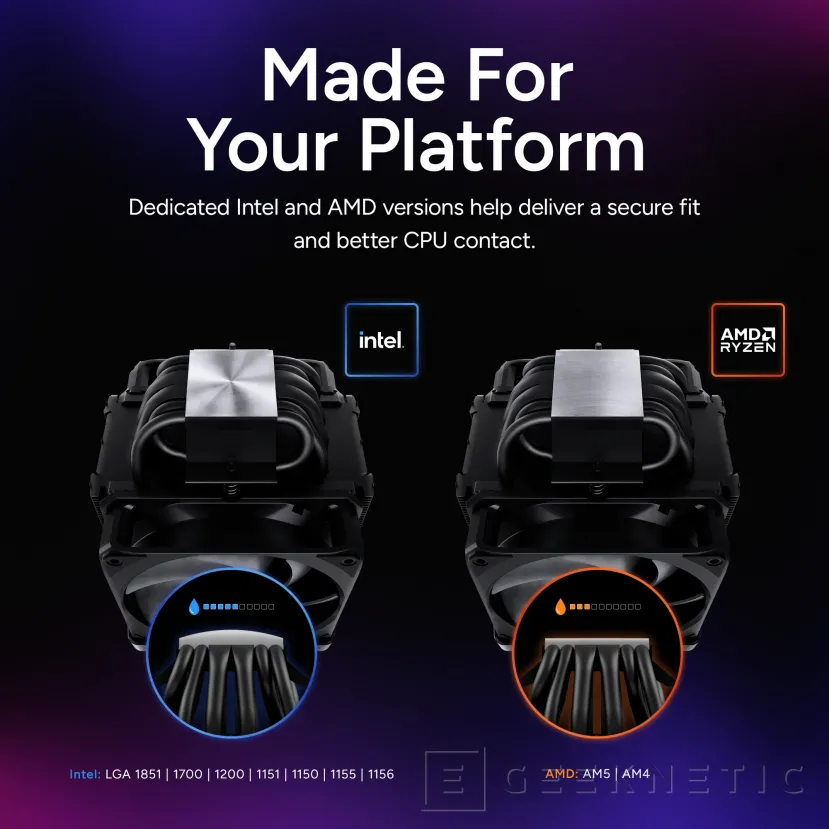

Regarding its appearance, this model maintains the lines that we find in this series V 3DHPwith a design of V8 engine high performance and without LED lighting. A version is available for processors Intelcompatible with LGA 1851, 1700, 1200, 1151, 1150, 1155 and 1156while the version for amd is available for Socket AM4 and AM5. Its measurements are 138.95 x 136.47 x 167.3mm and has a weight of 1,334 grams.

This new Cooler Master V8 ACE 3DHP is now available in stores and distributors of the brand, with a recommended retail price of 109 euros. We leave you the complete specifications.

• Model: Cooler Master V8 ACE 3DHP.
• Color: Black or white.

Compatibility

• AMD Sockets: AM5 and AM4.
• Intel Sockets: LGA 1851, LGA 1700, LGA 1200, LGA 1151, LGA 1150, LGA 1155 and LGA 1156.

Heatsink

• Guy: Air cooling.
• Heatsink material: aluminum fins with 2 3DHP heat pipes and 4 heatpipes additional.
• Heatpipes: 6 in total (2 x 3DHP + 4 heatpipes).

Fans

• Amount: 2 fans.
  • Frontal: 120 × 120 × 30mm.
  • Rear: 120 × 120 × 30mm.
• Bearing: Loop Dynamic Bearing.
• Speed:
  • Frontal: 0-2,500 ± 250 RPM.
  • Rear: 0-2,050 ± 250 RPM.
• Air flow:
  • Frontal: 152.23 m³/h (89.6 CFM).
  • Rear: 103.64 m³/h (61.0 CFM).
• Static pressure:
  • Frontal: 3.85 mmH₂O.
  • Rear: 2.0 mmH₂O.
• Noise level:
  • Frontal: 37 dB(A).
  • Rear: 34 dB(A).
• Connector: 4 PWM pins.
• Rated voltage: 12V DC.
• Consumption:
  • Frontal: 2.4W
  • Rear: 1.56W
• Rated current:
  • Frontal: 0.2A
  • Rear: 0.13A
• Safety current:
  • Frontal: 0.4A
  • Rear: 0.2A
• Estimated useful life (MTTF): More than 200,000 hours.
• Lightning: It does not have LED lighting.

Dimensions

• Measures: 138.95 × 136.47 × 167.3mm.

Other information

• Series: V.
• Warranty: 6 years.
