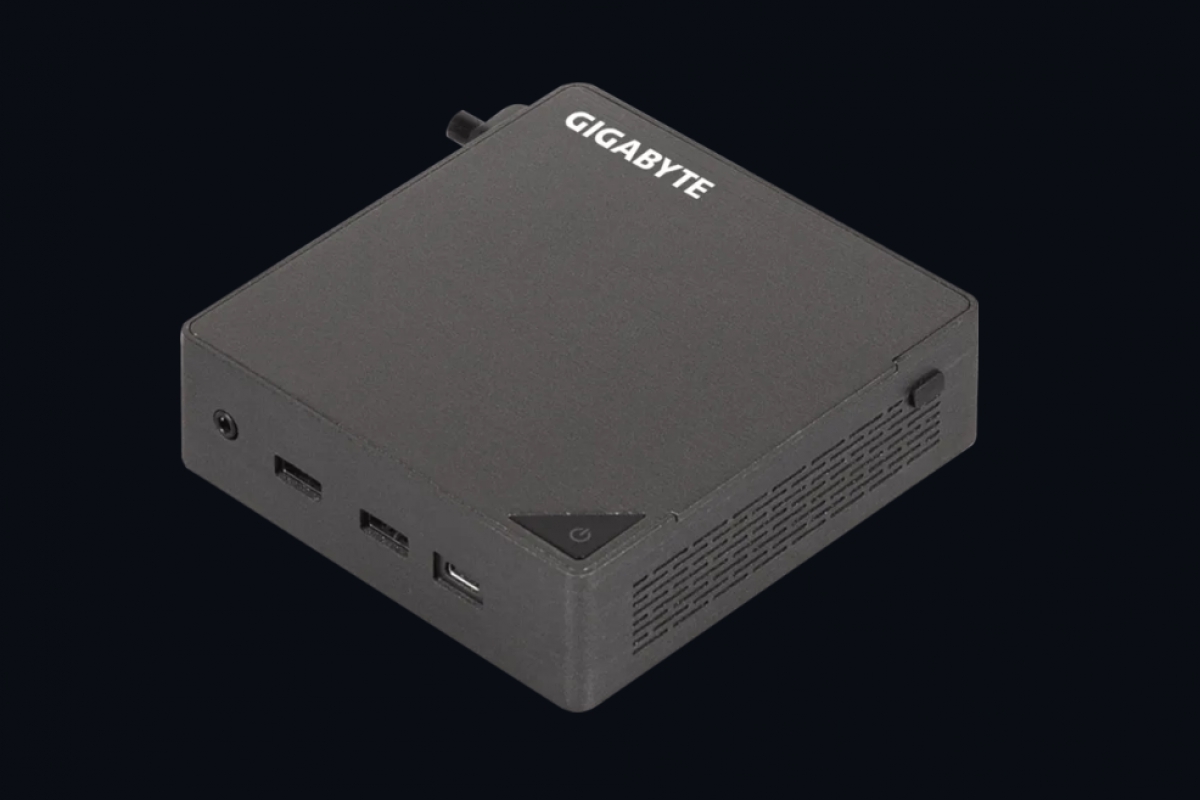

The new GIGABYTE BRIX combines Intel Core Ultra 9, up to 128 GB CSODIMM DDR5 and 50 TOPS NPU
With the growing market of AImanufacturers are launching more appropriate solutions that can address this type of technology. GIGABYTE ha launchedyour new BRIX Mini PCdesigned to scale solutions AI in companies. This new model of Mini PC GIGABYTE BRIX GB-BRU9-386Hit offers a ultra compact formatbut enhanced with Intel Core Ultra Series 3 processors. Only your NPU offers up to 50 TOPs of power for AI ideal for tackling this type of tasks in the edge.
The BRIX GB-BRU9-386H bets on Intel Core Ultra and up to 50 TOPS of AI
The Mini PC GIGABYTE BRIX GB-BRU-386H has a processor Intel Core Ultra 9 386Hmanufactured with the Intel 18A most advanced node. It has a configuration of 16 cores (4+8+4)and a reduced consumption of only 28 W. His GPU offers up to 40 TOPs of AI powerwhich add to your NPU 75% more powerful than the previous generationand that offers others 50 TOPs as a whole for one Faster inference, computer vision or real-time data processing.
Up to 128 GB DDR5 and support for four 4K displays
To help this set, up to 128 GB of DDR5 memory at 6,400 MT/s and two M.2 SSD slots. Thanks to your great connectivity and I/O ports It will offer a multitude of options to connect your peripherals and accessories, as well as screens for video output. It has Dual HDMI 2.1 and Dual USB 4 supports video output for up to 4 4K screens simultaneously.
To connect to data networks or the Internet wirelessly, it is offered Wi-Fi 7while for cable networks it has a 2.5GbE LAN port. Speeds that will allow offering real time data transfer.
Designed for robotics, Edge AI and smart factories
It is ideal for smart robotics, end-to-end computing applications, smart healthcare, surveillance or smart factories inter alia. Its use can be used for a multitude of actions that require power in Artificial Intelligence locallythis can be artificial vision, robotic arms, AMRs, warehouse logistics. A set designed to address the AI needs at the Edge that companies demand in this new era of Artificial Intelligence and agents.
We leave you the complete specifications.
Design and dimensions
- Dimensions: 112.6 x 34.4 x 119.4mm (width x height x depth)
- Format: Ultra-compact chassis (Slim Chassis)
- Motherboard size: 105 x 114.49mm
Processor
- CPU: Intel Core Ultra 9 386H
- Cores and threads: 16 cores (4P + 8E + 4 LPE)
- TDP: 28W
RAM memory
Compatible with two configurations:
SO-DIMM DDR5
- 2 DDR5 SO-DIMM slots
- Maximum speed: up to 5,600 MHz
- Maximum capacity: up to 96GB
CSO-DIMM DDR5
- 2 DDR5 CSO-DIMM slots
- Maximum speed: up to 6,400 MHz
- Maximum capacity: up to 128GB
Graphics and AI
- Integrated GPU: Intel Graphics
- Graphic frequency: up to 2.5 GHz
- GPU AI Power: up to 40 TOPS
- Dedicated NPU: up to 50 TOPS
Network connectivity
- LAN: 2.5GbE (Intel I226LM)
- Wi-Fi: Realtek Wi-Fi 7 RTL8922AE
- Bluetooth: Integrated via M.2 Wi-Fi module
video outputs
- 2 x HDMI 2.1
- Maximum resolution: 7680 x 2160 at 60Hz
- Compatible with FRL and CEC
- 2 x USB4 Type-C with DisplayPort 2.1 Alt mode
Audio
- Audio codec: Realtek ALC245
Storage and expansion
- 1 x M.2 2280 PCIe Gen5 x4
- 1 x M.2 2280 PCIe Gen4 x4
- 1 x M.2 E-Key 2230 for Wi-Fi and Bluetooth
Front ports
- 1 x Headphone/Microphone Audio Jack
- 2 x USB 3.2 Gen2 Type-A
- 1 x USB4
Rear ports
- 2 x HDMI (FRL and CEC)
- 1 x USB4
- 1 x USB 3.2 Gen2 Type-C (PD power input)
- 1 x USB 3.2 Gen2 Type-A
- 1 x USB 2.0 Type-A
- 1 x RJ45 Ethernet
Side
- 1 x Kensington security slot
Feeding
- Entrance: AC 100-240V
- Exit: DC 28V/5A
- Adapter power: 140W (USB-C Power Delivery)
Mounting
- VESA mount compatible
- Supported formats: 75 x 75mm and 100 x 100mm
Supported operating system
- Windows 11 64-bit
- Ubuntu 25.10
Operating temperatures
- Operation: from 0 ºC to 35 ºC
- Storage: from -20 ºC to 60 ºC
